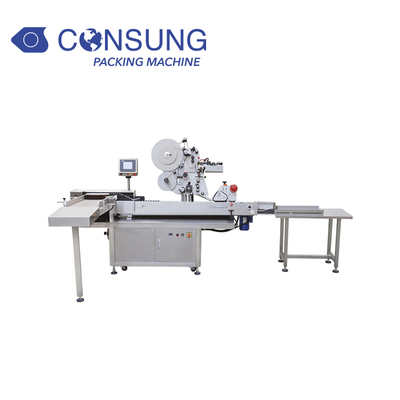

High speed glass ampoule labeling machine

High speed glass ampoule labeling machine

Product Item: BGJ-Y400
Category: Horizontal Labeling Machine
Views: 1999
Horizontal feeding
Simple operation
Low bottle breaking rate
Fast labeling and high precision
Description:High speed glass ampoule labeling machine is suitable to small bottle labeling which like penicillin bottle labeling, vial labeling, syrup bottle labeling,etc

Model BGJ-Y400
Labeling Speed 0-400bottle/min
Labeling Precision +/-1mm (exclude the product and label deviation)
Label Length 25-200mm
Outer Diameter of Bottle 16-85mm
Total Power 220V, 50HZ
Air Supply 0.5Mpa
Machine Size L2710*W1325mm*H1400mm


1. This penicillin labeling machine use rotary bottle feeding which can make sure high speed

2. It can use single or connect with production line

3. It adopt detecting system to make sure no product no labeling

4. It adopt servo motor to make sure high speed labeling, high precision labeling and good stability

Description of the whole machine

1) Feeding mechanism Buffer and conveying products to be labeled.

2) Conveying mechanism Conveying bottles.

3) Chassis unit is used to carry the supporting mechanism of each unit of the equipment and install electrical units inside.

4) Missing labeling detection mechanism detects whether there is any missing label on the bottle.

5) Flip standing unit The product is conveyed from horizontal to standing by this mechanism. (optional)

6) Human-machine interface (HMI) also called "touch screen" to operate equipment, sets and adjusts parameters, and monitor equipment operating status

7) Wheel attachment mechanism Turn the product when it passing, so that the label is attached to the bottle

8) Character detection mechanism Detect labels with incomplete or unclear printed content by taking photos (optional)

9) Thermal transfer machine is used for printing the contents of three issues. (optional)

10) Labeling machine head the implementation part of machine label releasing

11) Flip horizontal unit The product is transferred from vertical to horizontal to conveying mechanism through this mechanism。

12) Pneumatic rejection mechanism The unqualified products detected by the character detection institution and the missing labeling detection institution shall be removed to the rejection box.

13) Rejection confirmation mechanism Confirm whether the detected unqualified products are accurately picked.

14) Discharge turntable stacking and collecting platform Collect and cache qualified products and sort them into columns and output them to the back segment device.(optional)
