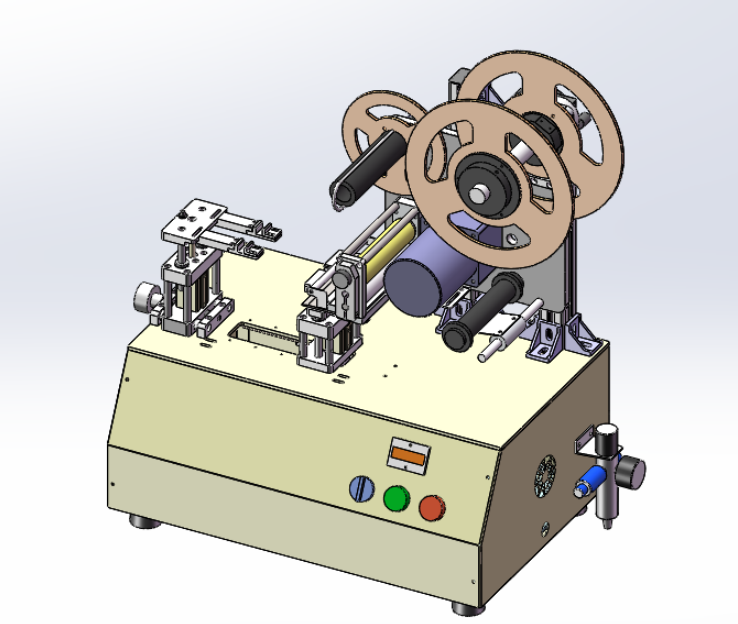

Semi Automatic Flag Labeling Machine for Power Cord Cable Wire Adhesive Sticker Labeler Applicator Machine

Semi Automatic Flag Labeling Machine for Power Cord Cable Wire Adhesive Sticker Labeler Applicator Machine

Product Item: BGJ-C50
Category: Manual Labeling Machine
Views: 4097
Cable Sticker Folded Flag Label Machine
Best flag labelling solutions
Commonly Used with Toothpick,Syringes,Tubes,Wire,Cables,etc
less product label deviation
Description:This Semi Automatic Flag Labeling Machine for Power Cord Cable Wire Adhesive Sticker Labeler Applicator Machine is suitable for round wire, flat wire, round tube, round tube, flag, lollipop, flower br


  • PRODUCT DESCRIPTION
  • VIDEO
  • INQUIRY US
Model BGJ-C50
Label Material Paper
Labeling Precision
+/-1mm(exclude the product label deviation)
Applicable Product Size Diameter0-8mm
Applicable Adhesive Labels Size L40-130mm W8-20mm
Power 220V, 50/60HZ
Weight 70KG

Features

1. The label feeding mechanism is composed of the label feeding plate, the label feeding shaft and other parts, which are used to place the adhesive sticker label materials in rolls.

2. Labeling products are provided by customers and customized according to requirements.

3. The mold adjustment mechanism is used to adjust the position of the product mold and flexibly adjust according to the labeling effect.

4. The main engine adjustment mechanism is used to adjust the front and rear position of the main engine, that is, the front and rear effects of folding in half.

5. Product clamping cylinder After manually placing the product on the fixture, the clamping cylinder clamps the product.

6. Product upper and lower cylinders After clamping the cylinder to clamp the product, the cylinder will automatically move up and down to complete the up and down labeling action

7. Air source processor Triple air source filter, after the air pressure passes through the processor, the air pressure can be adjusted to filter the water in the air source.

8. Label pulling motor The power output element of the entire labeling mechanism.

9. Photoelectric detection device Detects the gap between the identification labels to make the labeling motor reset and stop.

10. The delivery mechanism is composed of delivery trays, delivery shafts and other parts, which are used to collect the labelled waste paper.

11. The transition tape guide rod is used to smoothly transition the label, so that the label paper can be fed more smoothly.

12. Label pulling mechanism It is composed of label pulling wheel, eccentric wheel and other parts, and is an important power component of the equipment.

13. The label peeling plate is made of stainless steel, which makes the label separate from the backing paper.

14. Label suction cup After the label is separated from the backing paper, it is sucked by the suction cup, and the labeling effect is completed when it is pressed down.

15. Suction cup turntable mechanism After the suction cup sucks the label, the turntable rotates in place, and cooperates with the half-folding mechanism to fold the label in half to complete the labeling action.

16. Turntable moving cylinder Moves the suction cup turntable to the labeling position.

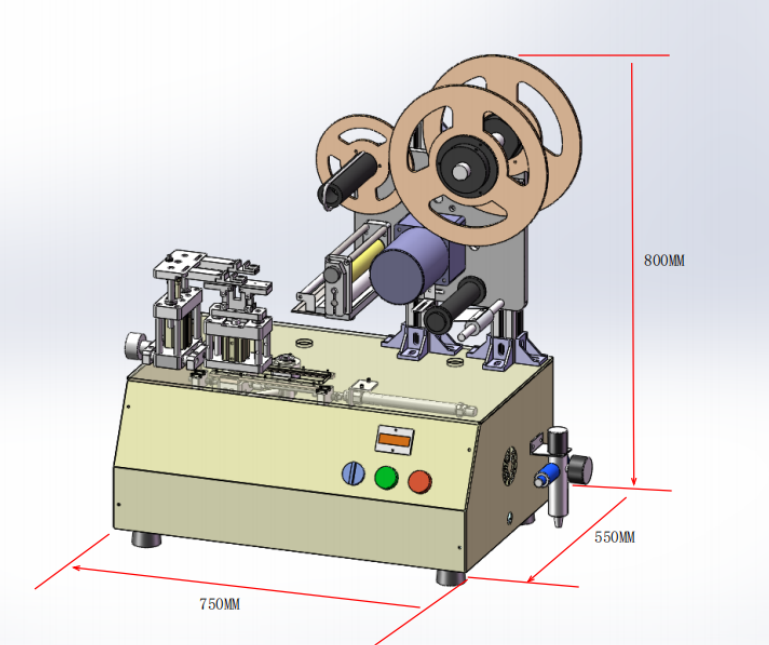

Machine Details


Samples



Case

Name: Stainsteel Tube Flag Label Machine
Country: Canada
Industry: Metal
Details:This factory produce all kinds of cylindrical tube, our flag labeling machine is to make flag label for stainsteel tube


Name: Semi Auto Flag Labeler for Fork, Knife, Spoon   3 SET
Country: Mexico
Industry:  Kitchen handware
Details: Semi auto flag labeling machine is to make flag label for spoon, knife, fork for promotion



Name: Semi automatic Labeler for Plastic Tube 2 SET
Country: USA
Industry:  Auto Spare Parts
Details: Our flag labeling machine is to label for different size of plastic tube.



Name: Labeling System for Electric Cable, Wire 2 SET
Country: USA
Industry:  Electronic Product
Details: Our flag labeling machine is to label for different size of wire, computer wire, etc

Till now our flag labeler machine already customized for different product like electric wire, computer line, plastic spoon, fork, knife, lollipop, pen, jelly, pet bones, molar rod, etc. we sold around 50sets of this kind of flag labeling machine. if any customers have interests, pls arrange samples to us to test it. we will share videos to u.
