Semi Automatic Carton Side&Corner Sealing Machine

Semi Automatic Carton Side&Corner Sealing Machine

Category: Case Sealer
Views: 545
adjust the carton size manually
fast and stable
quick wear parts service
simple and convenient operation
Description:This model is suitable for a variety of carton specifications, only need to manually adjust the width and height, the upper and lower four corners of the carton are automatically sealed at the same ti


  • PRODUCT DESCRIPTION
  • VIDEO
  • INQUIRY US
Table Height 580-780mm
speed 350-750cases/hour
Voltage 220V, 50HZ/110V, 60HZ
Max Carton Size L600*W500*H500mm
Min Carton Size L200*W150*H150mm
Applicable Tape Size 48mm 60mm 75mm
Machine Weight 180KG

Carton corner sealing machine

Table Height 500-750mm
speed 480-600cases/hour
Voltage 220V, 50HZ/380V, 60HZ
Max Carton Size L500*W500*H500mm
Min Carton Size L320*W200*H180mm
Applicable Tape Size 48mm 60mm 75mm
Machine Weight 180KG

Features

1.When the carton size changes, it needs to be adjusted manually. The height of the table and the height of the carton can be adjusted independently, which is simple and practical

2.The body comes with four high-strength brake wheels, which is very convenient for shifting work

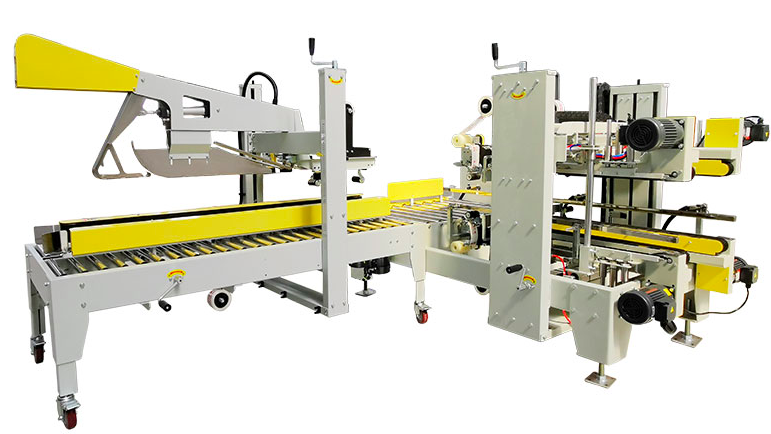

3.The inline carton sealing machine is responsible for sealing the upper and lower carton with tape, and the corner sealing machine is responsible for sealing the carton with tape on the four corners. Used in conjunction with to form an I-shaped sealed box

4.Widely used in household appliances, textile, food, department, pharmaceutical, chemical and other industries.
