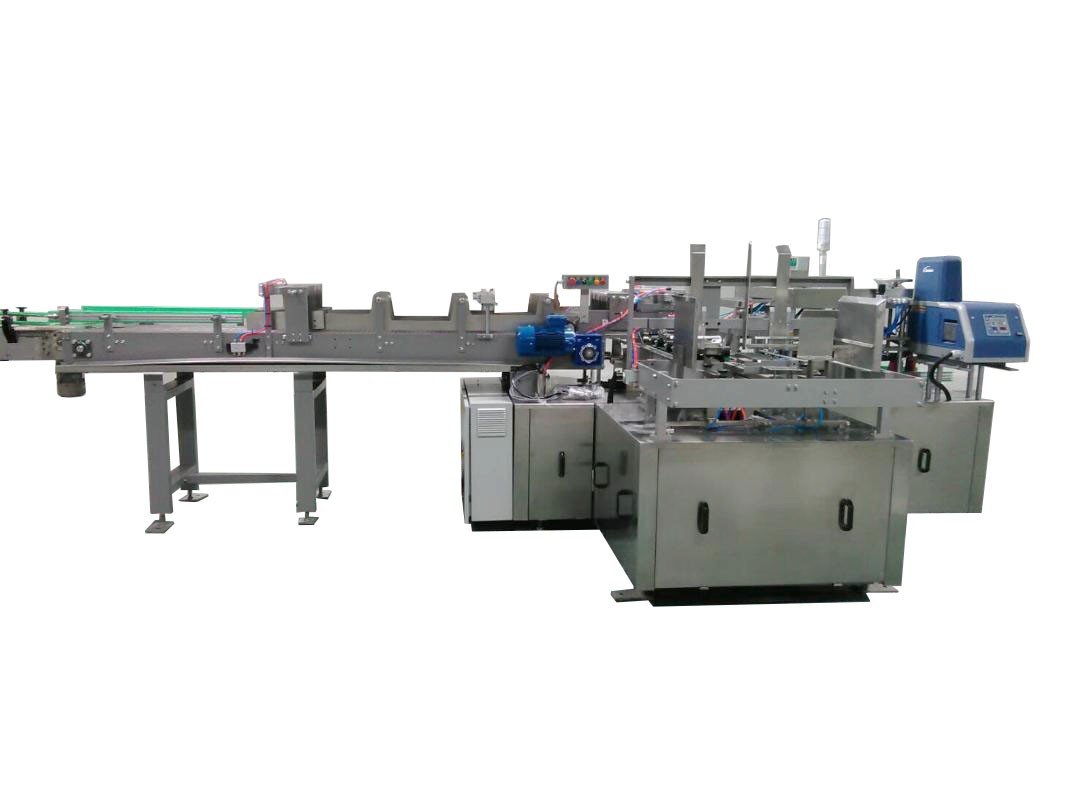

Wrap Around Carton Packing Machine for Can

Wrap Around Carton Packing Machine for Can

Product Item: GB-35
Category: Wrap Around Packer
Views: 1704
Handles up to 35 cases per minute
Operational flexibility
Cardboard magazine system
Low energy consumption
Description:This wraparound carton packing machine is use for wrapping bottles or cans into carton with hot melt glue sealing the carton, it can form carton, packing bottles into carton and seal carton


  • PRODUCT DESCRIPTION
  • VIDEO
  • INQUIRY US
Model GB-35
Speed 20-35case/min its up to product
Air Consumption 150NL/min
Production Efficiency ≥98%
Voltage 380V 50HZ 3phrase
Air Pressure 4-5kg/cm2
Power 7KW
Machine Dimension L5300mm*W2500mm*H1600mm

Description

The conveyor transport the cans to the formation structure of arranging the cans according to the array, and then transport the cans to the cardboard which is supplied from the cardboard magazine; the cardboard drop down with the cans, the cardboard will wrap the cans by the hot melt glue.

Features

1.It can run with fully wrap around carton packer and tray packer also

2.Wrap around packer is widely used in food industry, toy industry, chemical industry, medical industry, plastic industry

3.Wrap around packer carton storage system can store around 150pieces carton which save time to put carton

4. This wrap around carton packer is high speed type, which speed can reach max 35 case per minute

5. It is easy and convenient to control all machine action by touch screen

6. Nordson glue machine seal carton perfect

Machine Material

1.Conveyor belt is stainless steel 304

2.The frame base is A3 structure outsourcing stainless steel

3.The color of the equipment sprayed paint is determined by the user, and the purchased parts shall be subject to the standard color of the equipment supplier

4.Machine use touch screen control

Technical requirement

1.Single wraparound carton packing machine production capacity: 30-35 boxes/min

2.The hot melt adhesive system configured by the machine is produced by Nordson Corporation of the United States

3.The time from gluing to gluing of the carton is less than 0.7 seconds, and the time after gluing to before the carton is released (that is, the time that the carton is pressed by external force after gluing to solidify the hot melt adhesive) is more than 2 seconds

4.The sealing process is smooth and gentle, and there is no broken bottle phenomenon

5.After the carton is sealed, the carton is firm and tight, and there is no loose phenomenon

6.When the equipment wraps the product, it is not allowed to damage the appearance of the product package

Basic component

(1) Conveyor belt motor through the output of the main motor

(2) Lamination preparation installed on the side of the machine

(3) Lubricate bearings

(4) AC motor and converter

(5) Containers and packaging for transportation of Danfoss inverters

(6) PLC: Siemens

(7) Positioning and axis control: OMRON, Schneider

(8) Fixed control panel with touch screen

Applicable container
Applicable products: cans, glass bottles, PET bottles, etc.
Arrangement status: according to customer needs
carton type: horizontal corrugated carton box

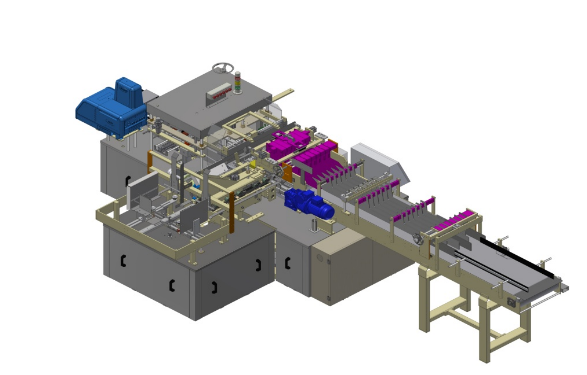

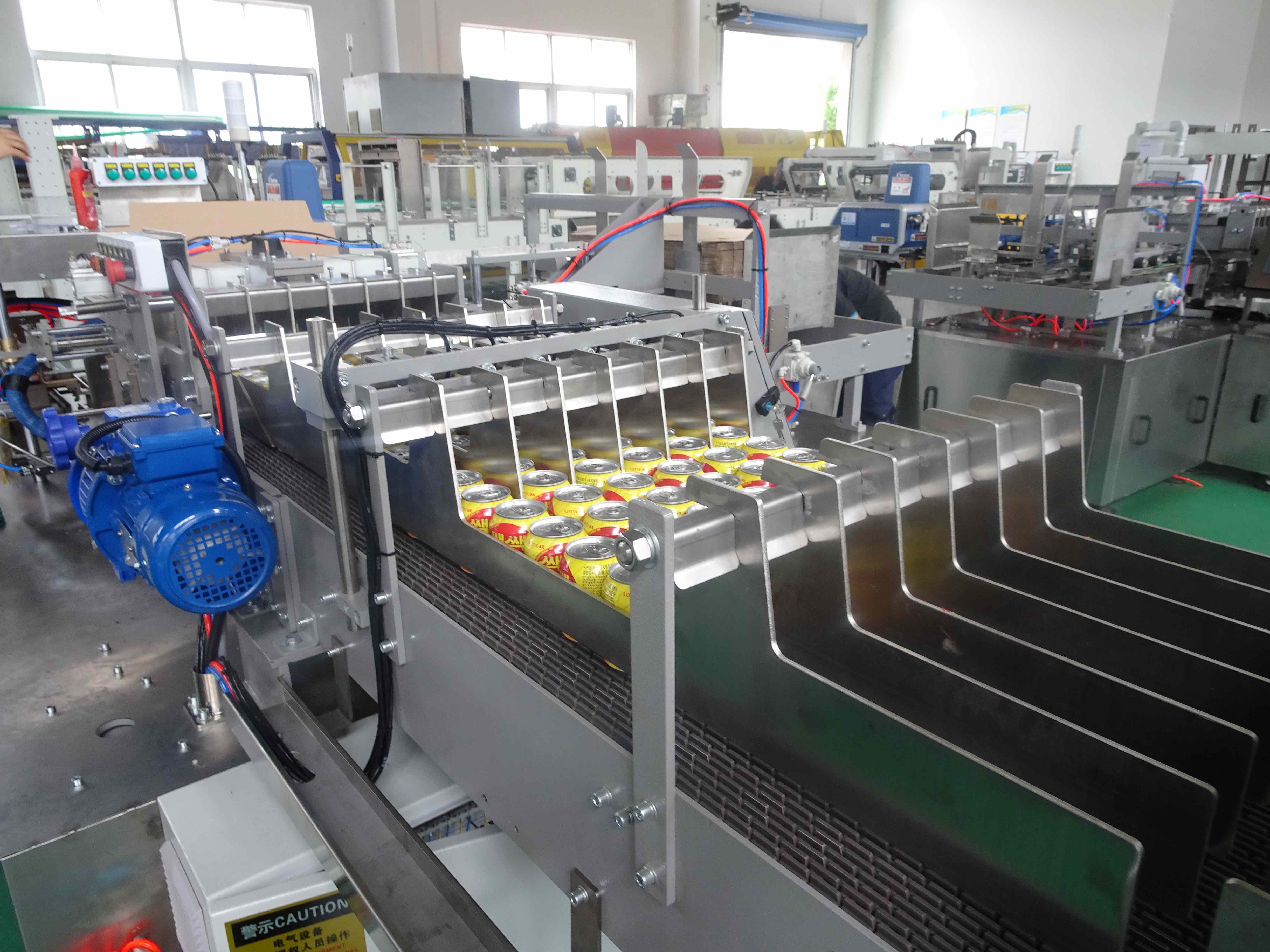

Machine Details
