5 gallon non-spill water cap labeling sealing machine

5 gallon non-spill water cap labeling sealing machine

Product Item: TB-004
Category: Top Labeling
Views: 617
Price: USD23000-USD25000
Cost Effective Equipment
2 Years Guarantee
1 Years Free Spare Part

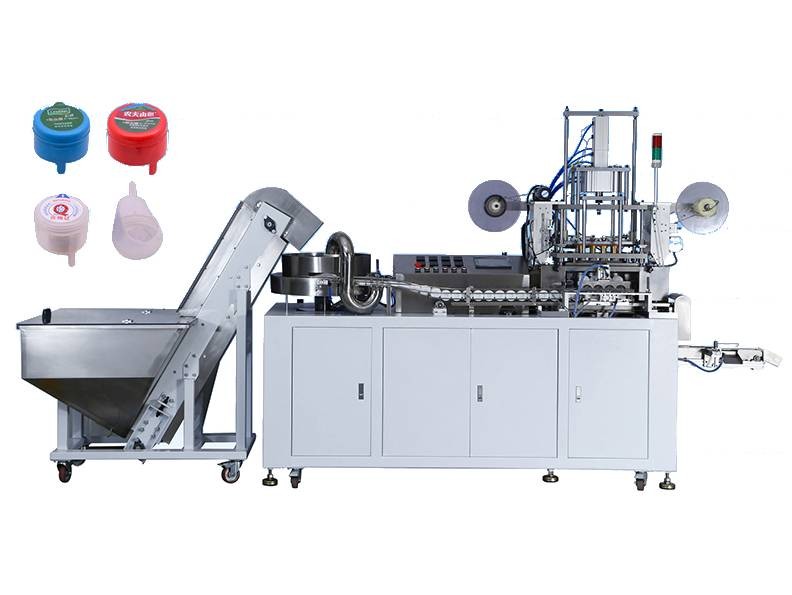

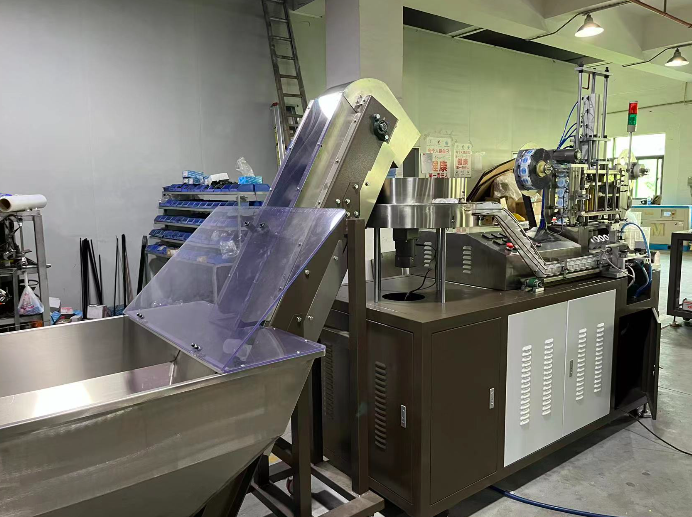

Description:Four plug 5 gallon water bottle caps label and sealing machine include elevator, cap out feeding rotation control, closed-loop stepper motor (servo control), label sucking, cap out feeding cap sucking


  • PRODUCT DESCRIPTION
  • VIDEO
  • INQUIRY US

Specifications

Model TB-004
Power around 3KW
Voltage 220V
Working Pressure 6kg/cm2
Air Pressure 7-10kg/cm2
Capacity around 5000piece/hour  if cap shape change or too soft, output will is less.
Label Film Thickness 0.05-0.1mm
Label Film Wide 57-70mm
Machine Size 2800*1000*1850mm

Product Features

1. The automatic rounding and tailing function of the bottle cap can automatically round the deformed bottle cap, and then automatically label it after the end; there is no need to worry about the difficulty of getting on the machine due to the deformation of the bottle cap;

2. Automatically stop and wait: when there is no film or cap, the machine will automatically stop and wait; when there is film or cap, the machine will automatically start;

3. Automatic winding-up and shutdown: Press the "Winding-up" function key, the machine will automatically stop all the bottle caps on the split plate after labeling and emptying;

4. Automatically stop or change containers; when the production output reaches the set output, the machine will automatically stop or change containers;Automatic fault diagnosis: display the cause of the fault, automatically stop and wait;

5. Safety protection: above the cover and secondary labeling area, if foreign objects enter the safety protection area, the machine will automatically shut down for protection;

6. Overheating protection: When the actual labeling temperature reaches or exceeds the set alarm value, the machine will automatically shut down for protection;

7. Product visual inspection: additional configuration, self-set product labeling quality standards, products that do not meet the standards will be automatically rejected.

8. China factory specializing in the production of 5 gallon non-spill water cap labeling sealing machine


Troubleshooting

1.When machine is in trouble , firstly check the failure phenomenon , then turn off power or air source to maintain (Unless emergency case , turn off power and air source)

2.Clean the dirt on the The First Time Heating Head by manual : Under Manual Working Mode , press Foil Cutting Cylinder(Upper Knife is cutting down) , pull out the air pipe at the bottom of the Foil Cutting Cylinder to use clean and dry cotton clothes to clean Heating Surface of Heating Head . If there is any dirt on the Heating Surface , use 600~1000# Sand Paper to wrap Heating Surface , simultaneously clean 2 PCS of Heating Surface.

Clean the dirt on The Second Time Heating Head by manual : Rotate the Divider to make Two Times Heating Heads are not the corresponding position , then use clean and dry cotton clothes to clean (Press the button “Start” , then press the button “Emergency Stop ” to stop machine once Rotary Table is staring up for a very short time , finally use rotate the Rotary Table until the suitable degree . ) (If there is any dirt on the Heating Surface , use 600~1000# Sand Paper to wrap Heating Surface , simultaneously clean 2 PCS of Heating Surface. )

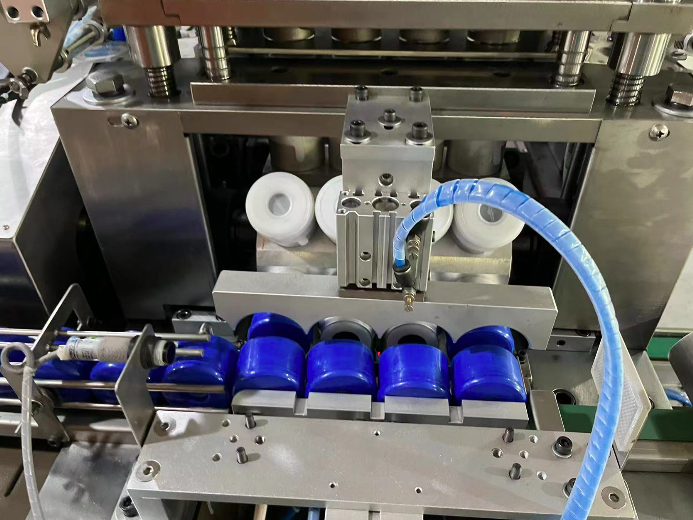

3.If there is no caps in the Cap Pushing Cylinder Area , machine stops ; If there is some caps in the Cap Pushing Cylinder Area , machine will be running automatically ; If the cylinder clamps the cap , firstly press the button “Emergency Stop ” , then solve the problem . It’s prohibited to enter the hands into this area , otherwise , the cylinder will be bouncing off promptly to clamp the hands .

4.Cap Pushing Cylinder won’t push caps under the following conditions : Check to see if there is any caps ?

Check the Photoelectric Switch to see if it is normal ?

The Photoelectric Switch of Cap Baffle Cylinder is not in position .

5.Be sure to confirm there is no hard objects in the Upper and lower knife cutting Foil , otherwise , it will damage the knife

6.Labeling Is Inclining

Check the Vacuum Suction Cup

Check the Upper And Lower Action of Copper Pipe connecting with Vacuum Suction Cup to see if it’s flexible or check the connector to see if it’s loosen or not

Under Manual Working Mode , press the “Foil Suction Labeling Cylinder ” to check if the bottom edge of Vacuum Suction Cap is lower 1~2 mm than Lower Knife or not

Check the Label Cutting Unit to see if there is any burr or not

7. Label Cutting Unit is inclining

Adjust the Cursor Inspection Switch

Adjust Heating Seal Foil Limiting Ring

Adjust the control parameters of film feeding stepper motor
