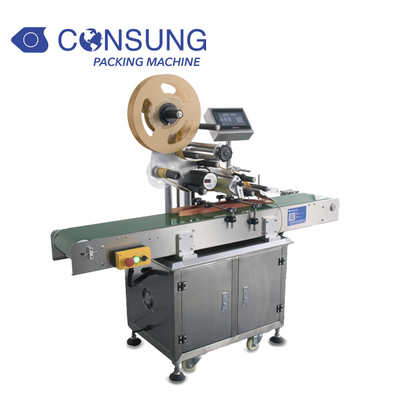

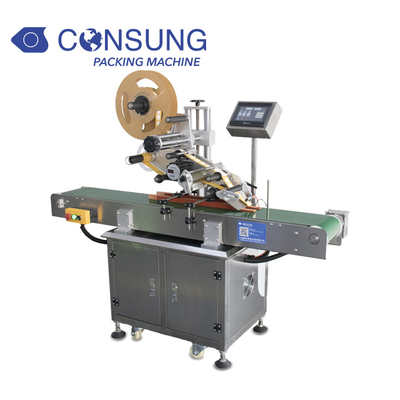

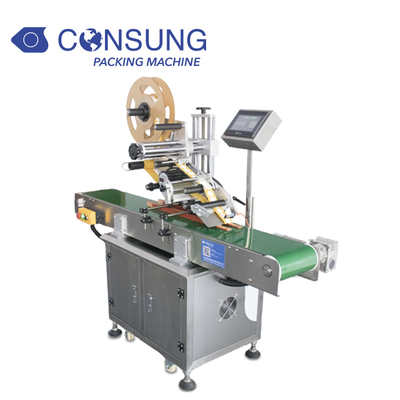

Automatic Top Labeling Machine Flat Surface Label Applicator Machine

Product Item: BGJ-P220
Category: Top Labeling
Views: 1514
Price:USD6000-USD9000
2 Years Guarantee
not label maker manufactuer
Ability to print
Description:Automatic Top Labeling Machine can apply to wide range of box sticker labeling, small carton sticker labeling, flat/square bottle labeling, paper labeling, card adhesive labeling, CD labeling, cap lab


  • PRODUCT DESCRIPTION
  • VIDEO
  • INQUIRY US
Model BGJ-P220 automatic labeling
Labeling Material Paper labels
Labeling Precision +/-1mm(exclude the product label deviation)
Labeling Speed 60-200labels per minute(its up to customer product dimension)
Applicable Product Size 20≤W≤150,L≥15
Applicable Label Size
15≤W≤150,  L≥10
Labeling Machine Size L2000*W950*H1600mm
Power
220V,50/60HZ

Features

1. The main materials of the top labeler machine are stainless steel and high-grade aluminum alloy. The overall structure is firm, beautiful and easy to operate and maintain. The accessories of the whole machine are imported electrical appliances, which have good stability, high precision and fast speed.

2. The mechanical structure is miniature design, takes up less space, is easy to adjust and saves time, and can be used alone or in line. The machine has its own pulley for easy movement. The labeling stability is good, and the labeling is flat, wrinkle-free, and bubble-free, which can meet the requirements of labeling on the plane and large arc surface of most products.

3. The man-machine interface operation control has the function of fault handling prompt, operation teaching function, production counting function, power saving function, production number setting prompt function, parameter setting protection function (parameter setting sub-authority management).

4. Perfect equipment matching Information (including equipment structure, principle, operation, maintenance, repair, upgrade and other explanatory materials), to provide sufficient guarantee for the normal operation of the equipment;

5. It can be customized according to customer requirements, and can be equipped with a corner labeling machine device and a printing system, which can be used in connection with other packaging equipment.

Machine Description

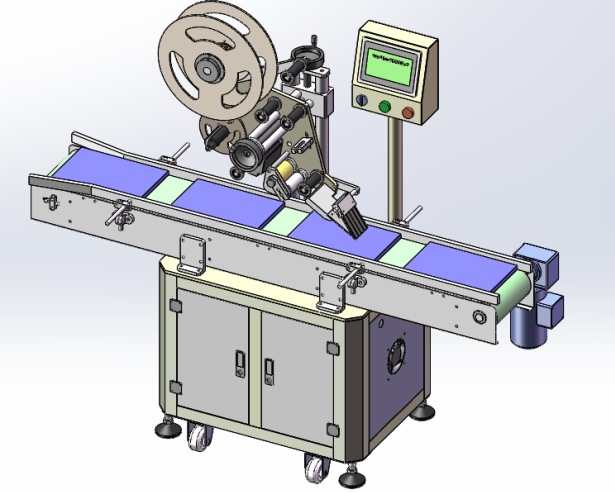

The automatic plane labeling applicator is mainly composed of roll label dispensing, labeling, back paper rewinding, induction, transmission, marking, and other institutions. This equipment is independently developed and designed by the company, which can realize automatic induction labeling and automatic labeling. The original manual labeling process is improved, the labeling effect and product weight recognition are more accurate, beautiful, and the error rate is lower. This equipment is customized according to customer requirements.

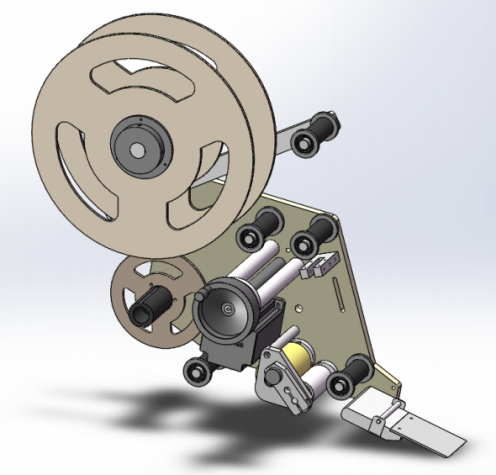

The automatic labeling machine head is composed of label pulling, paper receiving, and supplying labels, and the main components of the labeling mechanism.

Labeling machine touch screen Display and adjust all the information and content of the labeling part.

Emergency stop switch Power switch The power switch is used to turn on and off the power of the equipment, and the emergency stop switch stops the operation of the equipment in an emergency.

Conveying mechanism Make the product transport smoothly, complete the whole labeling, stainless steel material, the overall length is 2000MM.

Labeling electrical control cabinet Install all the electrical appliances of the labeling mechanism inside, with a lock, which needs to be openable.

Conveying motor 180W turbine variable frequency speed regulation motor, the components of the entire conveying mechanism.

Exhaust fans are provided on both sides to dissipate heat from the electrical appliances inside the chassis.



The roll label supplying plate used to place the whole roll of labels, made of plexiglass, with both positive and negative labeling machine heads.

Back paper take-up tray is used to collect the label waste paper after use. It is made of plexiglass and has both front and back labeling machine heads.

Horizontal adjustment mechanism It is used to adjust the horizontal width of the host, which can be adjusted arbitrarily according to different labeling positions.

Label pulling mechanism It is composed of label pulling wheel, eccentric wheel and other parts, and there are both positive and negative labeling machine heads.

Label pulling motor Imported servo motor, the main function is to detach the label from the bottom and stick it on the product, with front and rear labeling machine heads.

The label peeling plate is made of stainless steel, which makes the label separate from the backing paper.

The tape guide rod is made of stainless steel and POM material to make the label transition.

The label detection photoelectric bracket is made of aluminum alloy, and the label detection fiber is installed to detect the identification label.

Brake rocker arm The brake device that controls the start and stop of the bid-supplying mechanism.
