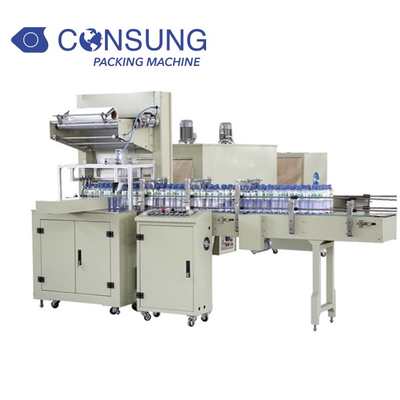

PE Film Shrink Wrapping Machine

PE Film Shrink Wrapping Machine

Product Item: MB-10
Category: Shrink Wrapper Machine
Views: 2060
Automatic Sleeve Shrink Wrapping Machine
PLC program automatic cycle control
Self-developed shrinking channel
Advanced film thermostatic heat sealing technology
Description:PE film shrink wrapping machine connect with labeling machine together for line production.


  • PRODUCT DESCRIPTION
  • VIDEO
  • INQUIRY US

low speed PE film shrink packing machine for plastic round bottle

Model MB-10
Speed 10packs/min for 500ml bottle
Voltage 380V 50HZ 3Phase  19KW
Packing Form 3*4. 4*6, also can be customized
Air Pressure 300NL/MIN
Packing Material LDPE(dust&static electricity removed)
Film Requirement Film roll width less than 580mm, thickness 0.04-0.10mm  roll diameter less than 400mm
Machine Dimension 5500*3200*2100mm without no-power conveyor frame

Features

1 .Adopts two roll of films, using thermal thermostatic knife which keeps better film cutting effect, and conveyors are all high temperature resistant belt.
2. Grouping like 4*6, 2*8 etc are all available for our machine wrapping.3.
3. PE film shrink wrapping machine is designed for the demand of packing requirement of beverage production, as pure water, mineral water, juice, soft drink, etc. It is automatic wrapping, with shrink tunnel packed perfectly.
4. MB-10 shrink film wrapping machine can not only be solely used, but used simultaneously with other equipment to form packaging production line. it can automatically array, aggregate and align PET beverage bottle or other similar articles, the package it with shrinking film, finally produce finished products after shrinking by heating, cooling and forming. the packaged product is firmly bound with excellent appearance, which can be opened conveniently.
5. Applying imported PLC, which can control the machine automatically, with stable performance, precise control, switch control the feeding of film, which can control the length of film and reduce the consumption.
