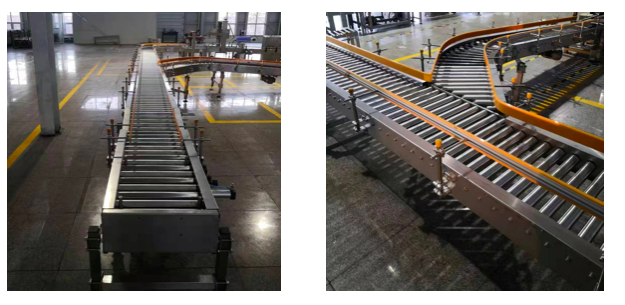

Case Conveyor Roller Conveyor

1. Description:

1.1. Adopt stainless steel roller with a diameter of 50mm, a thickness of 1.5mm, and a spacing of 76mm.

1.2 The conveyor chain side plate is made of 304 stainless steel plates with a thickness of 2.5mm, a height of 180mm, and a conveying width of 460mm.

1.3 Double row 08B chain is adopted for transmission, with high stability and low noise.

1.4 Stainless steel legs (diameter: 50MM), middle transverse bracing, side plate supports are all made of 304 stainless steel.

1.5. All bearings are made of stainless steel housing, and the bearings are made of abroad high-quality brands, which can be refueled through the oil nozzle.

1.6 No box failure, box turning, rotation, and damage during operation.

1.7 Conveyor height: the height from the ground varies according to the process change.

1.8. To avoid a large amount of carbon storage on the conveyor during carton conveying, resulting in extrusion damage of the carton.

1.9 All exposed stainless steel welds shall be machined or polished to smooth and remove black spots after welding.

1.10. All exposed stainless steel plates shall not have the scratch, concave or convex marks.
