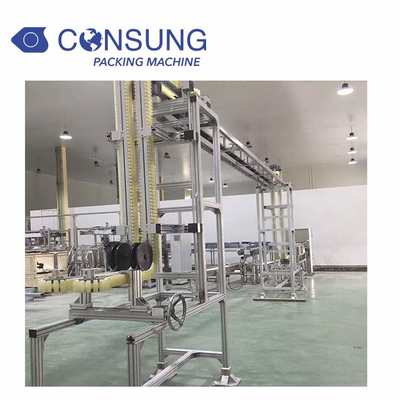

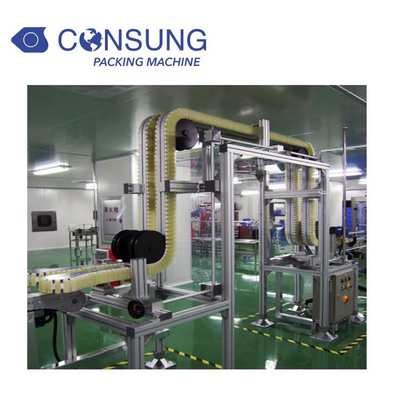

Vertical Lift Gripper Elevator Conveyor Systems

Category: Conveying System
Views: 1245
Achieve delivery continuity
Save conveying space
High conveying efficiency
Complete automation of conveying
Description:Gripper Elevator Conveyor is suitable for lifting and conveying objects and cartons in a fixed state from top to bottom or from bottom to top. In the process of conveying, the space is fully utilized,


  • PRODUCT DESCRIPTION
  • VIDEO
  • INQUIRY US
Transfer Direction
Up, Down
Conveying Product
Glass Bottle, Plastic Bottle, Can
Product Size
Max. Dia. 300mm
Product Weight
Max. 2kg
Capacity
10pieces/min 12pieces/min its up to detailed design
Conveying Height
less than 10m  can be customize
Machine Size
2500mm*1000mm*tentative

Features

1.It is used for glass bottle, plastic bottle, can or other product elevation or lowering between floors,and can be set at the entrance or exit of production equipments to form a producing circle. It is suit for transporting bottles, cans, plastic,boxes, paper,boxes or cartons.
2.Center rack is made up of  aluminum. conveyor chain is composed of special chain plate and sanitary rubber mats. it can ensure glass bottle breakage rate and meet health standard.
3. Driving Parts: tray will be installed at drive chain. Motor will choose omate brand.  Overload protection is composed by electrical overload protection and mechanical process protection.
