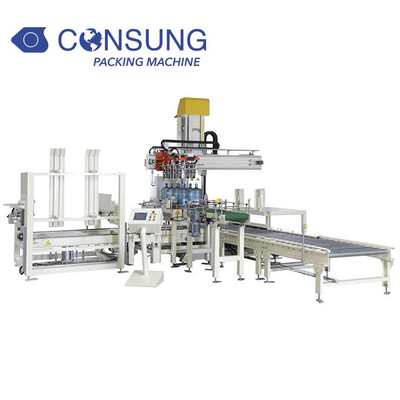

5 Gallon Pail Barrel Palletizing System

5 Gallon Pail Barrel Palletizing System

Product Item: MD-400
Category: Palletizer&Depalletizer Machine
Views: 1916
Low energy consumption
Save labor cost
Economical and cost effective solutions
Pallet magazine
Description:5 Gallon Barrel Palletizing System stacks the 5-20L bottles on the pallet as required, then transfer whole pallet of product out automatically.Manufacturer specializing in the production of 5 gallon b


Model MD-400
Stacking Speed

600barrel/hour, 1200barrel/hour

Stacking height per pallet 2000mm can customize
Max. Load per layer 150kg
Max. Load per pallet 1500kg
Electric power 8-20KW
Compressed Air 500L/min
Air supply pressure more than 0.6Mpa
Pallet Size its up to customer


1. 5 Gallon Barrel Palletizing System adopts PLC and touch screen to control the complete system

2. easy operation and quick changeover time.

3. All control device will be installed outside the guard fence

4. Whole stacker system include:empty pallet feeding device, pallet roller conveyor, security fence, full pallet outfeeding device, speed up conveyors, etc.


The barrel palletizer is to place the filled 5-gallon barrels on the pallet (wood, plastic) in a certain arrangement, and stack them automatically. Ship to warehouse for storage. This equipment adopts PLC+touch screen control to realize intelligent operation management, which is simple and easy to master, it can greatly reduce labor force and labor intensity. Adopt high-speed, stable and space-saving concept design; separate off-disk, faster and more space-saving. One machine has multiple functions, can be adjusted quickly, and can be used for palletizing products of various specifications. It meets the requirements of food hygiene, adopts oil-free pneumatic components, and 60% of the moving parts adopt a humanized design that does not require oil lubrication for life, which reduces a lot of use costs for users.
