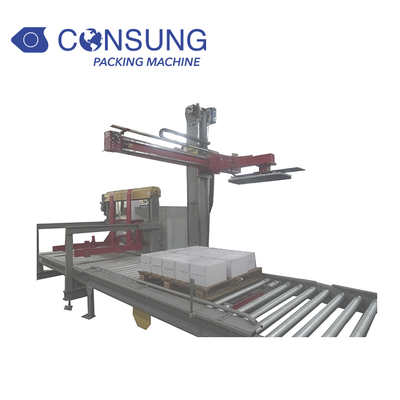

Single Column Palletizer Machine

Single Column Palletizer Machine

Product Item: MD-S20
Category: Palletizer&Depalletizer Machine
Views: 2006
High compatibility
High degree of intelligence
Servo motor drive
Compatible with a variety of bottle types
Description:Single Column Palletizer Machine is specially designed for oversea market, it is suitable for carton palletizer, drum palletizer, 5gallon palletizer,etc


  • PRODUCT DESCRIPTION
  • VIDEO
  • INQUIRY US
Model MD-S20
Stacking Speed 20 cartons/min
Power 9KW
Max.Loading Weight Per Layer 100KG
Max. Loading Weight Per Pallet max. 1500KG
Max. Stacking Height 2m customized
Air Consumption 550L/min
Air Pressure more than 0.6MPa
Pallet Size 1200*1000,1100*1000mm, its up to customer

Features

1. Complete system include carton in-feed, empty pallet in-feed, full pallet out-feed, control system, conveyor system, etc

2. Easy to delivery to overseas

3. User friendly control and good stability

4. Variable for different kind of product like bucket, container, drum, carton, film product, etc


Description

Packaged products (box/bag/barrel/pack) are stacked onto the empty pallet in a certain order through a series of mechanical actions, which is convenient for handling and transportation of products in bulk. The on-site operating environment will be improved; the productivity shall be increased; the customers' requirements for production processes and packages shall be satisfied.



Working flow

Firstly, place 10 empty pallets in the pallet dispenser by a forklift, and the pallet dispenser will transport one pallet on proper stacking position; Products are transported from the packaging machine to the accelerating belt line which may enlarge the distance between two products through speed difference; the steering mechanism will change the direction of products according to their arrangement mode, and the arrangement mechanism will arrange the products in a certain order; and then the coordinate robot gripper will suck the well-arranged products and carry them to the pallet. Repeat the actions until all products are stacked well. Whenever a stack of products is finished, the full pallet conveyor line will transport the products to the workstation of the forklift.

Description of main equipment

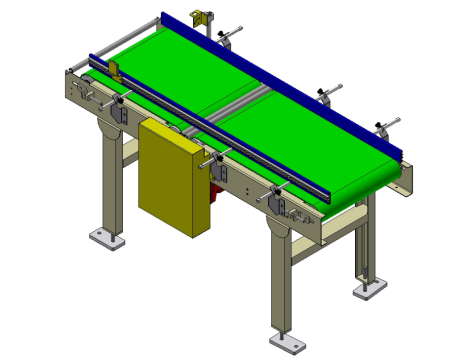

Accelerating belt line: There are two belt lines with different speeds. The rear belt line’s speed is over one times faster than the front one (the distance between two boxes can be adjusted by adjusting the speed difference between two belt lines by the frequency converter). Speed differential keeps a certain distance between each box, which is good for steering box. The belt is imported baseband, and the main frame is varnished carbon steel.



Carton-steering mechanism + roller conveyor : when the box steers, the speed of the bottom conveyor line is the same with that of the rear part of accelerating belt line; when the box needs to be rotated 90°, the cylinder will stretch out quickly to block the one side of the box.

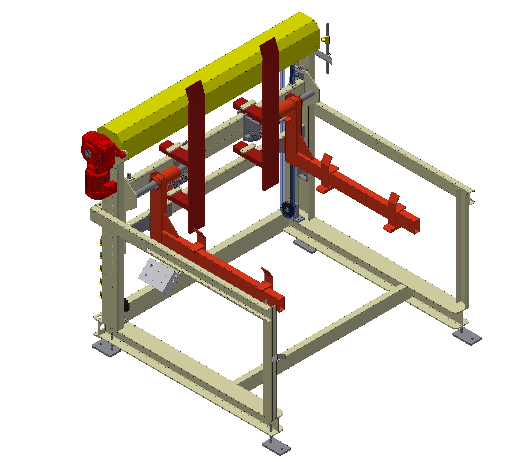

Pallet dispenser: this system can hold 10 empty pallets. Pallets are placed on the pallet conveyor line by cylinders. The main frame is varnished carbon steel.
