Carton Packing Line for Bottle

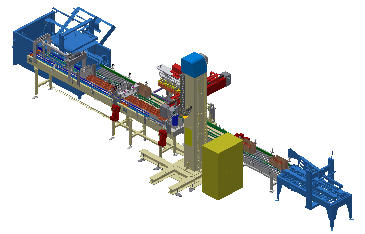

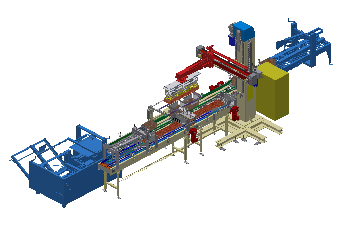

This production line realizes automatic case erector, automatic lane separation, automatic bottle unscramble, single-column automatic case packing, and automatic case-sealing conveying system to improve the on-site working environment, increase production efficiency, and meet customer requirements for production process loading.

Process description: The automatic packaging line system can realize automatic case erecting, automatic lane separation, automatic bottle unscramble, single-column automatic packing, and automatic case sealing conveying system.
During production, the products come from the front-end equipment and are transported to the material sorting conveyor by the lane divider; the cartons are unpacked by the case erector machine and transported to the waiting area. The cartons are opened by the frame support mechanism, and then the single column is combined with the fixture to achieve The case, after the packing is completed, the case is sealed and output.

Sorting conveyor line: The conveyor line is driven by a motor and used to connect front-end equipment. It adopts Regina mesh belt and is equipped with a servo lane dividing mechanism, a bottle pressing mechanism and a pressure relief mechanism.

Case-opening machine: The combined action of the motor and the cylinder completes the semi-forming of the carton.

Single column host: Powered by a servo motor, it completes the movement in the Y and Z directions, thus realizing automatic packing.

Fixture: The cylinder and servo motor combined action to complete the grabbing of the bottle

Carton sealing machine: The combined action of the motor and the cylinder completes the sealing of the carton

CONSUNG can provide different kinds of case packing solution for different product like bag, box, bottle, can, etc. if you have packing requirements, pls contact us to get customized solutions!
